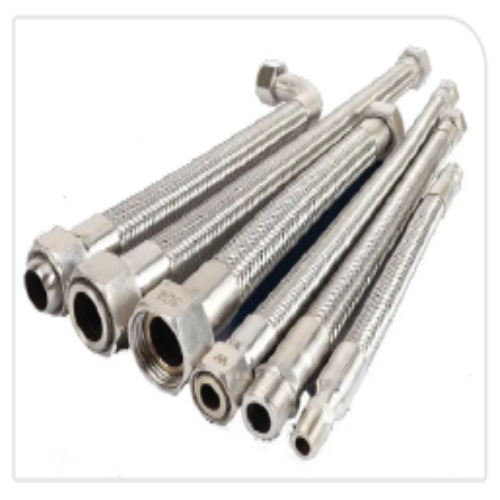

Stainless Steel hose Welded With SS Flange Size from 1/4'' to 10''

Name: Stainless Steel hose Welded With SS Flange Size from 1/4'' to 10''
Brand: HYDROFLEX SOLUTION
Price: 250.0 INR
Availability: InStock

Price 250.0 INR/ Meter

Get a Price/Quote

Stainless Steel hose Welded With SS Flange Size from 1/4'' to 10'' Specification

Hardness
Flexible

Application
Pharmaceutical, Food & Beverage, Chemical, Dairy

Use
Transfer of fluids under sanitary conditions

Product Type
Flexible Hose Pipe

Material
Stainless Steel 304/316

Finish
Polished

Length
100 Meter (m)

Tube
Smooth Bore PTFE/SS

Cover
Stainless Steel Braid

Connection
TC Ferrule End

Temperature
200 Celsius (oC)

Hose Type
Single/Double braided

Media
Suitable for acids, alkalis, solvents, steam, water, oils

Bend Radius
Min. 90 mm

Working Pressure
Up to 150 Bar

Standard
Meets ASTM & DIN norms

Inner Diameter
12 mm - 100 mm (customization available)

Burst Pressure
Up to 450 Bar

Weight
Depends on length & diameter

Corrosion Resistance
Excellent

Cleaning
CIP/SIP Suitable

End Connection Size
1/2 Inch to 4 Inch TC ferrule

Stainless Steel hose Welded With SS Flange Size from 1/4'' to 10'' Trade Information

Minimum Order Quantity
50 Meter

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Supply Ability
500 Per Month

Delivery Time
1 Week

Main Domestic Market
All India

About Stainless Steel hose Welded With SS Flange Size from 1/4'' to 10''

Find the perfect solution for demanding sanitary fluid transfer with our redoubtable Stainless Steel TC Ferrule Hose Pipe, sought-after by top pharmaceutical, dairy, chemical, and food & beverage enterprises across India. Select specifications from a wide range: inner diameters 12 mm to 100 mm, customizable lengths up to 6 meters, and reinforced single or double braided construction. Experience instant checkout on world-class hoses, crafted with stainless steel 304/316, smooth bore PTFE/SS tubes, and polished finish. With excellent corrosion resistance, flexible handling, and compliance to ASTM & DIN standards, this hose is engineered for lasting performance, even under 150 Bar.

Distinctive Features & Use Directions

Exceptionally crafted for versatility, this Stainless Steel TC Ferrule Hose Pipe offers a minimum bend radius of 90 mm and is suitable for continuous cleaning (CIP/SIP). The double or single-braided design ensures extra strength and flexibility, while its robust construction provides exceptional resistance against acids, alkalies, solvents, and steam. Simply connect using the TC ferrule ends, and maintain optimal sanitation by following recommended cleaning protocols. Special features include a smooth bore for seamless flow and customizable end connection sizes.

FOB Port, Sample, and Packaging Details

Your order is handed over promptly at designated FOB ports across India, ensuring smooth transportation and minimized expenditure on logistics. Samples can be requested to evaluate quality prior to volume purchase, streamlining your procurement process. Each hose pipe is securely packaged in robust, tamper-resistant materials to minimize damage or contamination risks during transit, guaranteeing you receive your products in pristine condition, regardless of length, diameter, or application. Tailored solutions for bulk orders are also available on request.

FAQ's of Stainless Steel TC Ferrule Hose Pipe:

Q: How do I choose the appropriate inner diameter and length for my application?

A: Select the inner diameter and length based on your fluid type, pressure needs, and installation requirements. Customization is available from 12 mm to 100 mm inner diameter and up to 6 meters in length to ensure a tailored fit for your process.

Q: What are the advantages of the single or double braided construction?

A: Double braided hoses offer enhanced pressure rating and durability, while single braided options are more flexible and lighter. Choose based on your specific pressure and flexibility needs.

Q: Where can this hose pipe be used?

A: This product is suitable for pharmaceutical, food & beverage, chemical, and dairy industries-anywhere sanitary, high-performance fluid transfer is demanded.

Q: How resistant is the hose to chemicals and temperature variations?

A: With excellent corrosion resistance and a working temperature range from -30C to +200C, the stainless steel hose safely handles acids, alkalines, solvents, oils, and steam.

Q: What is the process for cleaning and maintaining the hose pipe?

A: The hose pipe is designed for Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) protocols. Regular cleaning using these standardized processes ensures longevity and sanitation of the hose.

Q: When can I request a sample and what are the typical lead times?

A: Samples are available upon request. Lead times for sample or bulk orders depend on customization requirements and will be communicated at the time of order placement.
